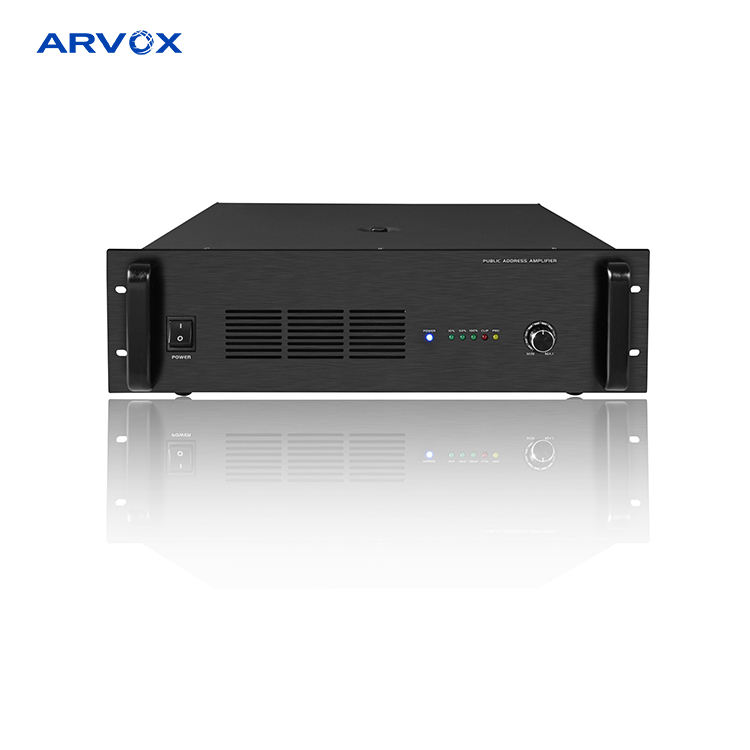

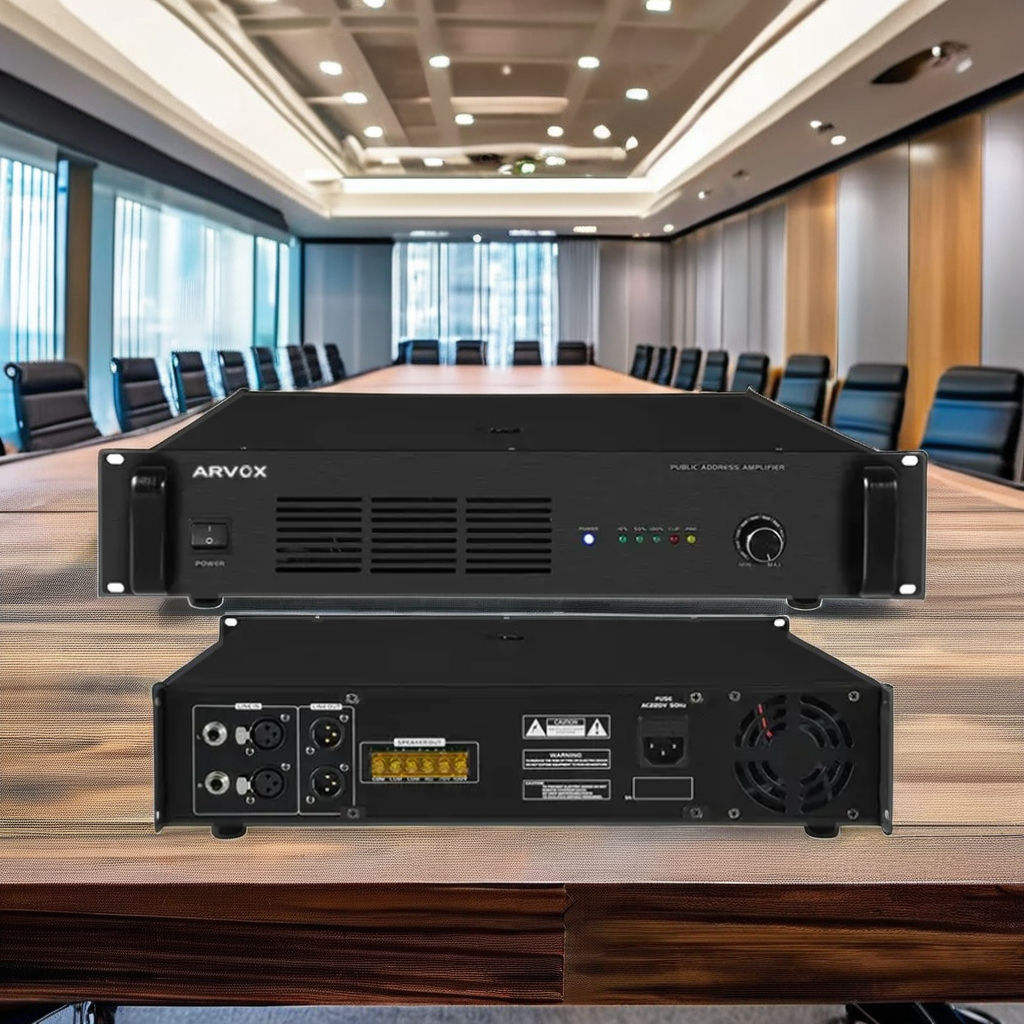

Clean rack-mounted front panel
Power switch, ventilation, status indicators and gain control are arranged for simple operation.
Designed for stable public audio projects

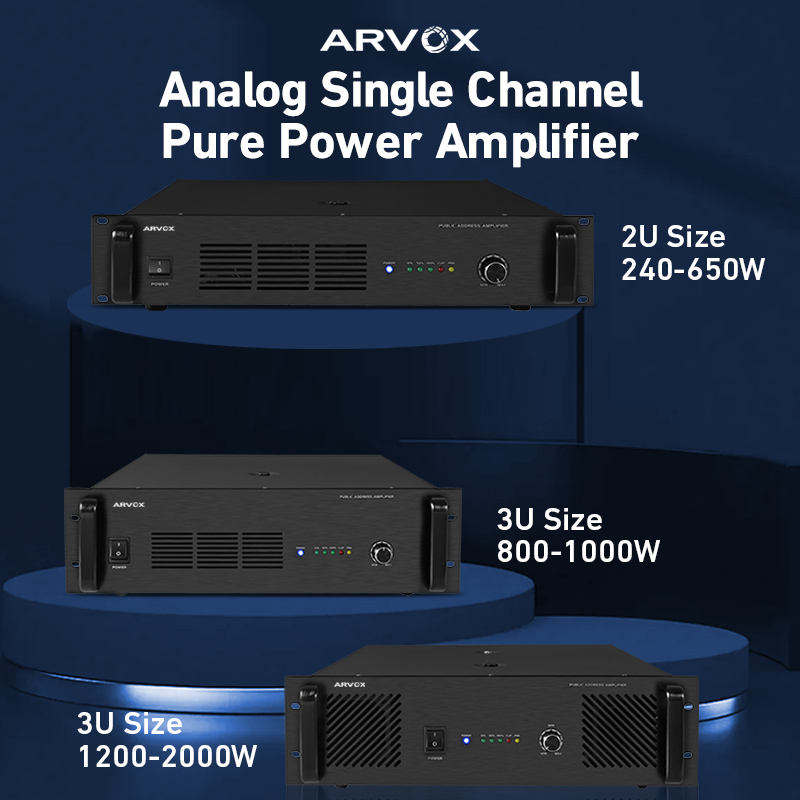

The RX series covers compact 2U models from 240W to 650W and 3U high power models from 800W to 2000W. It supports 4-16Ω, 70V and 100V speaker outputs for flexible PA system design.

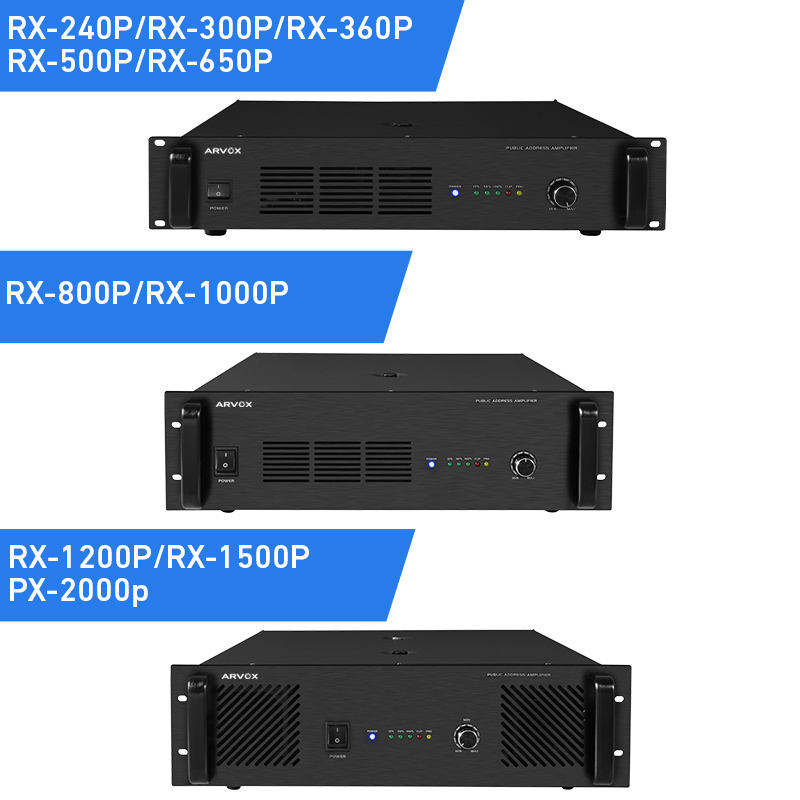

Multiple power options
Choose from RX-240P to RX-2000P according to project scale and speaker load.

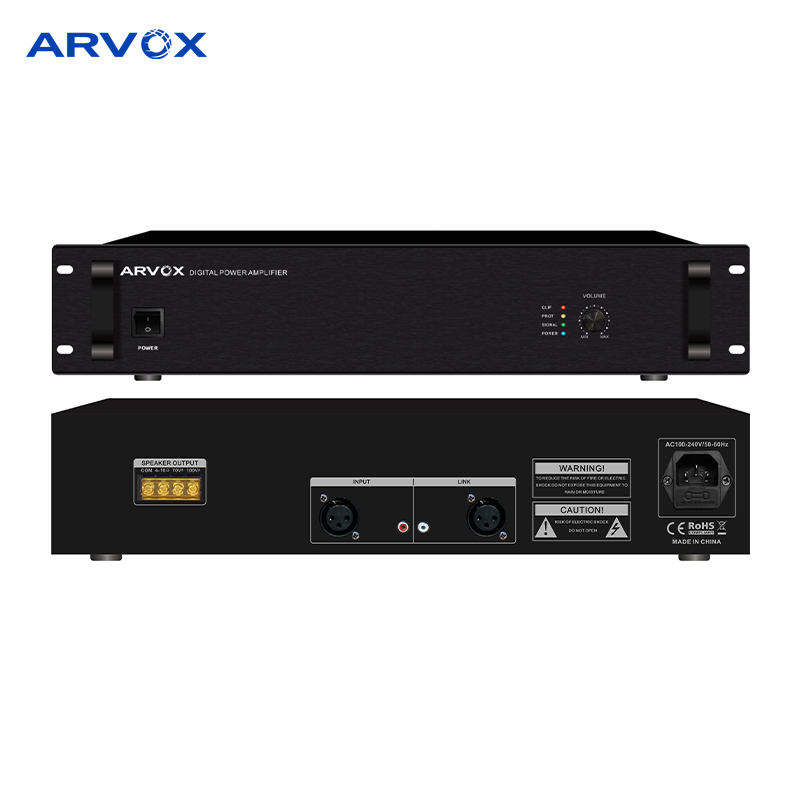

Professional rear connectivity
Designed for PA system integration with stable input, output and power connection layout.
Applications
Multifunctional system for various projects
Suitable for conferences and public spaces of different sizes.
Hotel
Exhibition Center
Sports Halls
School
Station
Airport
Specifications

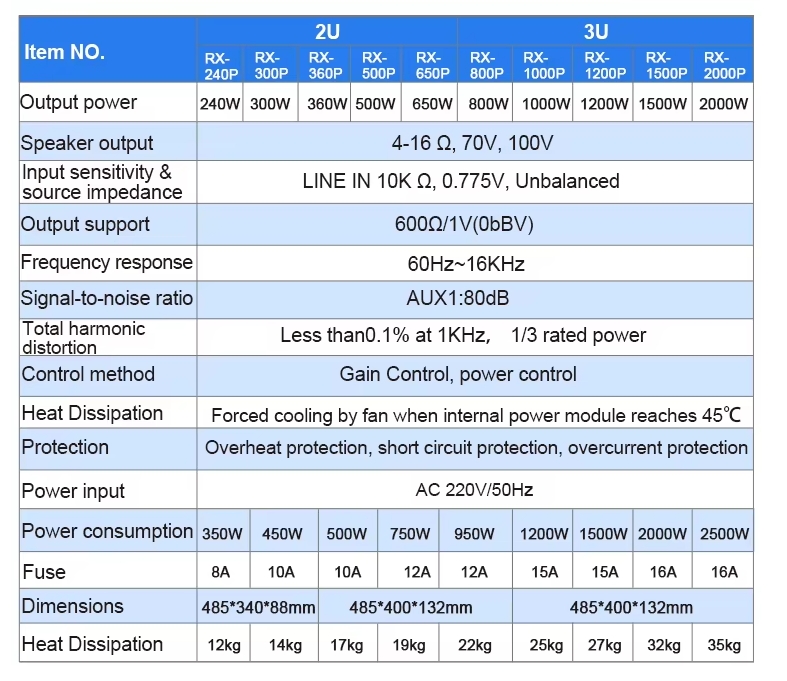

RX Series Power Amplifier Parameters
Structured model data for sourcing, comparison and engineering selection.
Speaker Output4-16 Ω, 70V, 100V
Input Sensitivity & Source ImpedanceLINE IN 10K Ω, 0.775V, unbalanced
Output Support600Ω / 1V (0bBV)
Frequency Response60Hz-16KHz
Signal-to-Noise RatioAUX1: 80dB
Total Harmonic DistortionLess than 0.1% at 1KHz, 1/3 rated power
Control MethodGain control, power control
Heat DissipationForced cooling by fan when internal power module reaches 45°C
ProtectionOverheat, short circuit and overcurrent protection
Power InputAC 220V / 50Hz
| Model | Output Power | Power Consumption | Fuse | Dimensions | Weight |
|---|---|---|---|---|---|
| RX-240P | 240W | 350W | 8A | 485*340*88mm | 12kg |
| RX-300P | 300W | 450W | 10A | 485*340*88mm | 14kg |
| RX-360P | 360W | 500W | 10A | 485*340*88mm | 17kg |
| RX-500P | 500W | 750W | 12A | 485*340*88mm | 19kg |
| RX-650P | 650W | 950W | 12A | 485*340*88mm | 22kg |
| RX-800P | 800W | 1200W | 15A | 485*400*132mm | 25kg |
| RX-1000P | 1000W | 1500W | 15A | 485*400*132mm | 27kg |
| RX-1200P | 1200W | 2000W | 16A | 485*400*132mm | 32kg |
| RX-1500P | 1500W | 2500W | 16A | 485*400*132mm | 35kg |
| RX-2000P | 2000W | 2500W | 16A | 485*400*132mm | 35kg |
Need a PA amplifier for your project?
Send your required power, speaker quantity, project country and application scenario. ARVOX can help match the right RX series model.
